杰佛伦GEFRAN M32-6-M-B07C-1-4-D 传感器
杰佛伦GEFRAN M32-6-M-B07C-1-4-D 传感器
产品价格:¥6000(人民币)
  • 规格:M32-6-M-B07C-1-4-D
  • 发货地:上海
  • 品牌:
  • 最小起订量:1只
  • 免费会员
    会员级别:试用会员
    认证类型:企业认证
    企业证件:通过认证

    商铺名称:上海川翊实业有限公司

    联系人:周学娇(小姐)

    联系手机:

    固定电话:

    企业邮箱:2881680253@qq.com

    联系地址:上海市青浦区华隆路1777号E通世界商务园D栋502室

    邮编:201701

    联系我时,请说是在口碑仪器网上看到的,谢谢!

    商品详情

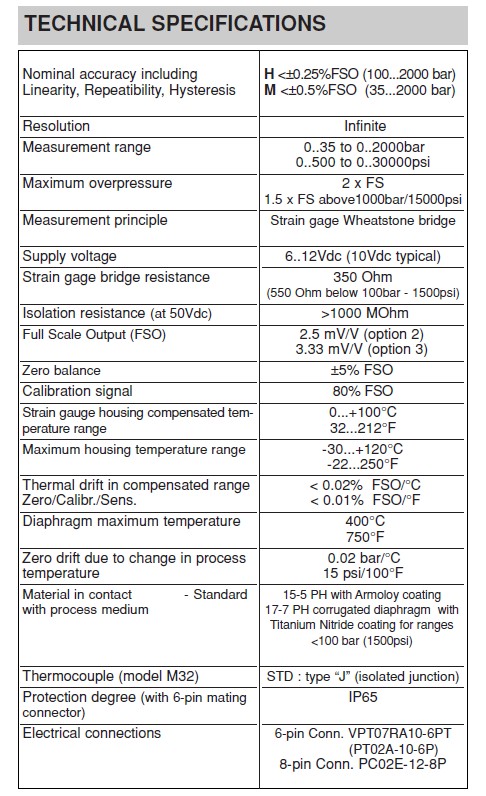

      Main features
      ? Pressure ranges from:
      0-35 to 0-2000 bar / 0-500 to 0-30000 psi
      ? Strain gage Wheatstone bridge
      ? Accuracy:
      <±0.25% FSO (H); <±0.5% FSO (M)
      ? Internally generated 80% calibration signal (R-Cal)
      ? Fluid-filled system for temperature stability
      ? Fully interchangeable with all existing brands
      ? Grade of protection:IP65 (6-pin connector version)
      ? 1/2-20UNF,M18x1.5 standard threads ; other types
      available on request
      ? Standard diaphragm is 15-5 PH stainless steel with
      Armoloy coating
      ? 17-7 PH corrugated diaphragm with TiN coating
      (Titanium Nitride) for ranges below 100bar-1500psi
      ? Other diaphragms available on request
