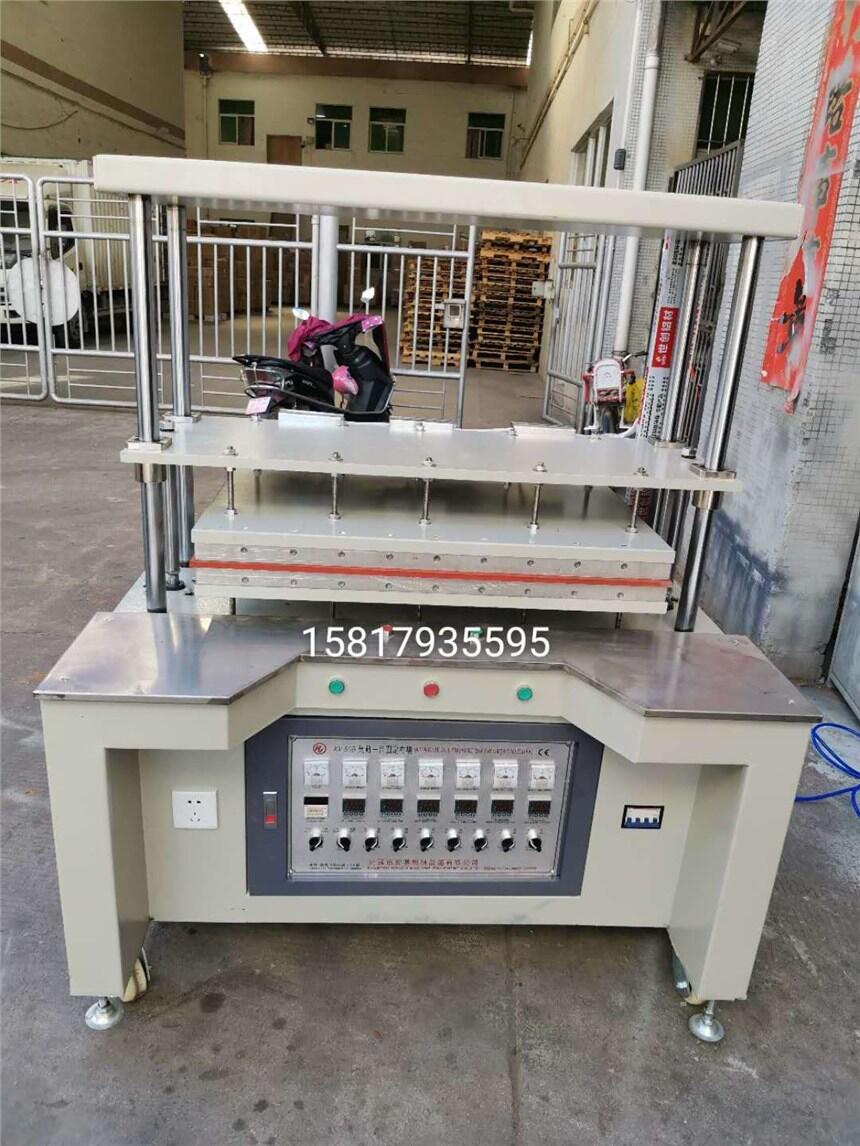

KV-16A8/F-0 气动罩杯定型机

?

KV-168A/F-0 PNEUMATIC BRA CUP MOULDING MACHINE

?

用途：主要用于内衣模杯产品及其他同类产品的定型生产。

特点：

1.机体外形精巧，结构紧凑，上下模易吻合,运作平稳; .

2.内置式电热管装置，进口温控表及保温材料控温隔热，继电器自动显示加温时间，减少电量消耗；

3.左右独立恒温控制及上下模双向驱动，均衡左右模杯温度，有效利用整机空间，克服传统温差过大造成的阴阳色差缺陷；

技术参数：

1.电源/功率：220V/8KW?

2.电热片规格：Φ12×220mm×500W/200V

3.模台尺寸：450mm×220mm

4.机台尺寸：1450mm×650mm×1850mm

5.适用物料：文胸、服装等面料

6.适用模具：文胸棉模及定布模具

7.重量：350KG

?

Function:

It is mainly used for molding different foam bra cups and other similar products..

?

Features:

?

1. It is delicate and exquisite in appearance and compact in structure. The upper moulds can be easily coincided with the lower moulds so as to operate steadily.

?

2. Equipped with the internal heating pipes, imported thermostat and heat insulator materials to control the temperature. The machine can show the heating time automatically and reduce the power-consumption.

?

3. It adopts independent thermostatic control in both sides and upper and lower bi-directional driver, which can balance the temperature of left and right moulds and make effective use of the whole space, overcoming the chromatism defect caused by the difference in temperature.

?

Technical parameter:

?

1. Power supply/power: 220V/8KW?

?

2. Specification of the electrothermal tube :?Φ12×220mm×500W/200V

?

3. Dimension of? the mould table: 450mm×220mm

?

4. Dimension of the machine: 1450mm×650mm×1850mm

?

5. Suitable material: foam or fabric materials for bras and other garments.

?

6. Suitable moulds: moulds for foam bra cup and fabric cup

?

7. Weight:350KG

?

?
